G80 FMAI's / G80 Sport Front Mount Air Intakes 🚗💨 / G80 Snorkels / Front Grill Air Intakes / 2018-2020 Genesis G80 Sport / 3D Printed PC
G80 FMAI's / G80 Sport Front Mount Air Intakes 🚗💨 / G80 Snorkels / Front Grill Air Intakes / 2018-2020 Genesis G80 Sport / 3D Printed PC
The Monopoly is over!
Say goodbye to compromise and hello to boosted performance at a fraction of the price with these optimized G80 Front Mount Air Intakes (FMAI). Designed for efficiency and style, our FMAI’s not only boosts your G80’s performance but also gives it a sleek and aggressive appearance, all without compromising crucial engine and transmission cooling.
What sets us apart? Unlike other competitors that simply ask you to remove or trim your OEM Shroud or Upper deflector, our innovative design simplifies the installation process. Equipped with a precision-cut cutout template, we take the guesswork out of trimming, ensuring you keep your OEM Upper Deflector and maintain peak engine and transmission cooling performance while enjoying the benefits of superior air intake.
Don't settle for mediocrity. Armed with a degree in Aerospace Engineering from the world's largest and most respected university specializing in aviation and aerospace, this design has been fine-tuned to optimize efficiency and functionality to the fullest extent. Upgrade your G80 and experience the difference firsthand. Dominate the road with unrivaled performance and style.
Improved Design Features:

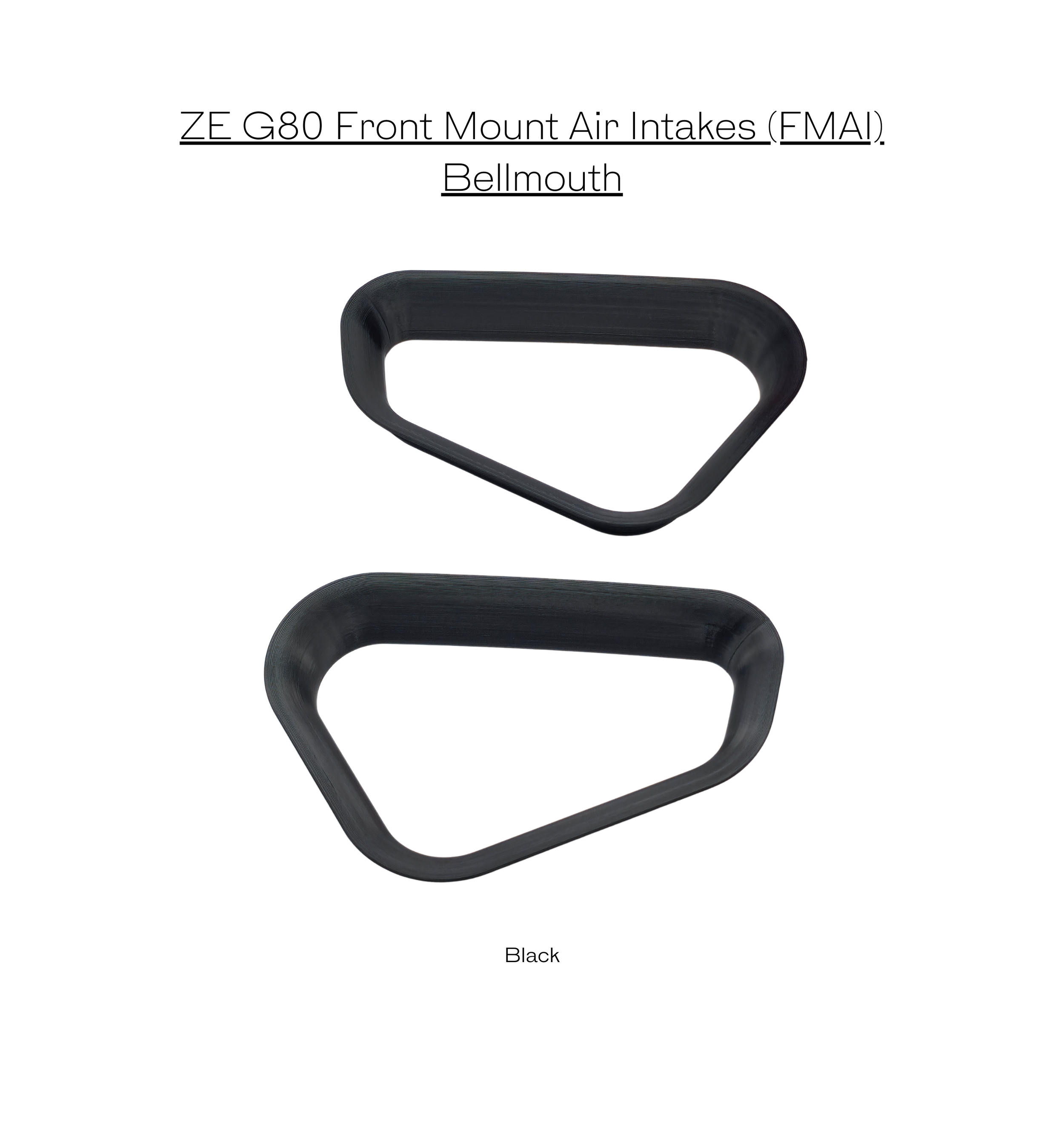

Optimized air inlet/bell mouth to align with OEM grill and sensors to provide a uniform appearance
Optimized mounting profile to eliminate headlight interference
Optimized 3-point mounting profile to increase durability and stability
Optimized flush airbox intake profile to eliminate air loss and increase stability
Improved materials with superior UV and heat resistant properties
Includes cutout template to trim and keep OEM Air Shroud/Upper Deflector
NEW Custom Text Option! - choose from 21 different colors and from 8 available fonts
Improved Aerodynamics:
Optimized air inlet/bell mouth to align with OEM grill and sensors to provide maximum efficiently
30% larger air intake area and bell mouth height to maximize air intake
100% air intake tangency both at inlet and outlet to maximize laminar airflow
High angle of attack to reduce water or snow intake
Tools Needed:
10 mm Socket
Socket Wrench
Socket Extension
Universal Joint Socket
Hot knife or equivalent plastic trimming tool
Flat head screwdriver
Compatibility:
2018-2020 Genesis G80 Sport
Approximate FMAI Dimensions:
8” Height X 11” Width X 6” Length
Bumper Removal?
You can reference the links below to learn how to remove your front Bumper. Installation assumes front bumper is removed.
Links:
ZacariasEngineering.com (Directly from Creator & Maker):
https://www.zacariasengineering.com/shop-online/ze-2023-a-1300
Genesis G80 Owners with Modifications Facebook Support Community:
https://www.facebook.com/groups/717647390199949
Shipping?
Free domestic shipping is included. International Shipping is now available through our Etsy or eBay listing. See links below.
Notice:
BOLTS NOT INCLUDED. OEM Hardware is to be used.
Quality Note:
Each 3D printed part may contain imperfections such as small or minor; gaps between layers, vibrations and ringing, scars on top surface, gaps in thin walls, dimensional inaccuracies or discoloration.
Caution:
PC products may soften and or deform if exposed to temperatures above 235° F (114° C).
ABS products may soften and or deform if exposed to temperatures above 195° F (90° C).
ASA products may soften and or deform if exposed to temperatures above 206 °F (97 °C).
Legal Disclaimer:
All logos and vehicle images displayed are the property of their respective owners.
Patent Pending.
